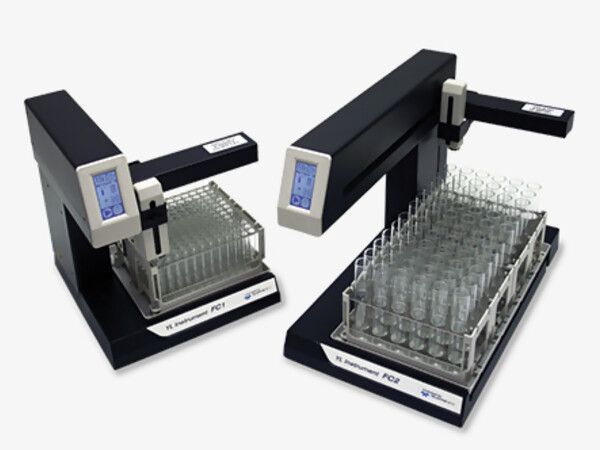

Foxy R1 & Foxy R2 (Fraction Collectors)

Fraction collector, Foxy1 and Foxy2 are to be used ...


Fraction collector, Foxy1 and Foxy2 are to be used for the isolation, purification and collection of a valuable samples in the pharmacology, material research and analysis of natural compounds, etc.

The fraction collector can be adapted to a broad spectrum of applications.
The units can distribute fractions into 96 well microplates, standard tube sizes, and bottles.
For essentially unlimited volumes, funnel racks can direct fluids to any collection vessel or downstream process.
There are 2 models available depending on the rack capacity which are Foxy R1 and Foxy R2. Both can be controlled by either control touch screen or PC with software.



*Foxy R1 : 1 rack
*Foxy R2 : Double rack with radio frequency identification to automatically detect collection racks for easy setup.

 Collect peaks of interest separately using any combination of slope, level, and time window reliably separates peaks by monitoring detector output, so you don’t have to expend glassware on no-interest effluent.
 Collect uniform fractions by time, drop count, or pumped volume.
 Stores up to 8 collection methods.
 Choice of available racks (specify when ordering).
 Coldroom-friendly design
 Sturdy cast aluminum frame
 Easy to use symbolic touch screen interface
 Built-in Ethernet and RS-232 communication capabilities
 Faster tube changes
 µL delay volume between diverter valve and drop former
 Flow rates to 25 mL/minute (Foxy R1) / Flow rates up to 125 mL/minute(Foxy R2)
